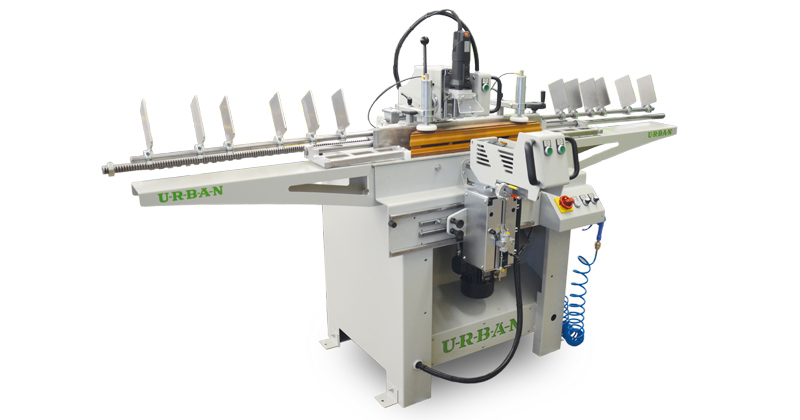

GSU-K 100

Handle drilling lock case milling and copy milling unit

Highlights

• Drilling unit with controllable automatic hydro-pneumatic feed
• Drilling position infinitely variable by hand wheel with mechanical digital display
• Profile positioning for centre handle position by centring unit operated by hand wheel
• Uniform handle seats adjustable by lateral hinged stops
• Stable milling unit with manual feed running on two heavy-duty guides
• Milling height is set by turret stop
• Manual copy milling unit with tracer pin from the top
• Universal copying template
• Two adjustable pneumatic profile clamping units with safety pre-clamping pressure

Options

• High-frequency motor for lock case milling
• Hinged stops
• Copy milling templates
• Handle drill / milling cutter


What else you should know

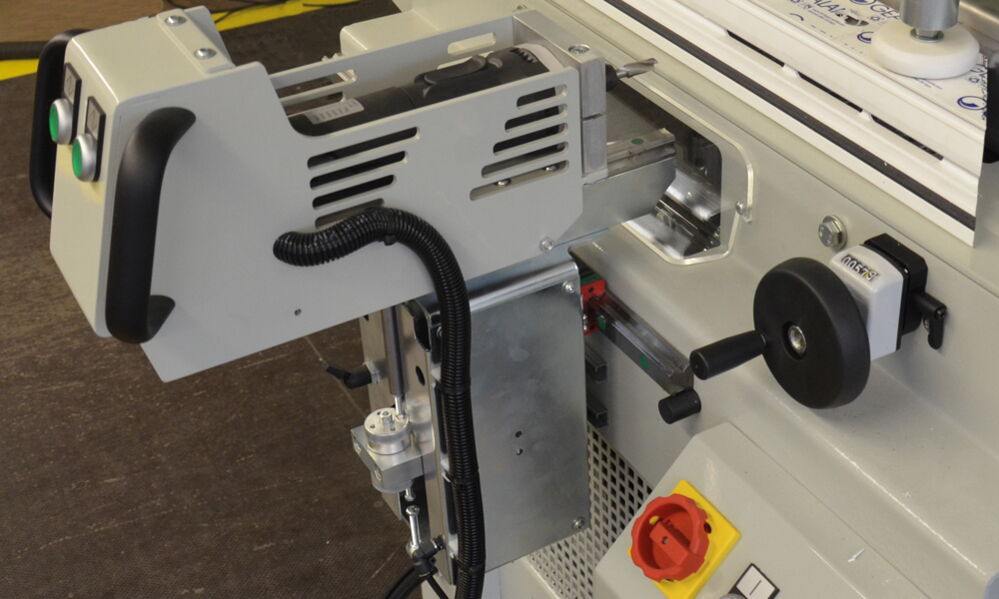

Lock case milling cutter

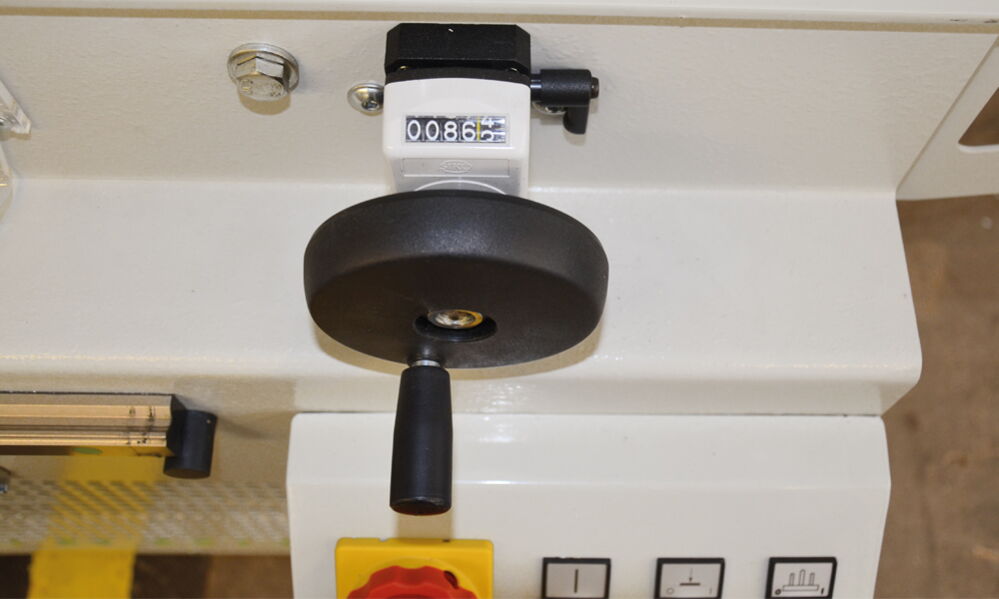

Adjustable drilling & milling position adjustable by hand wheel

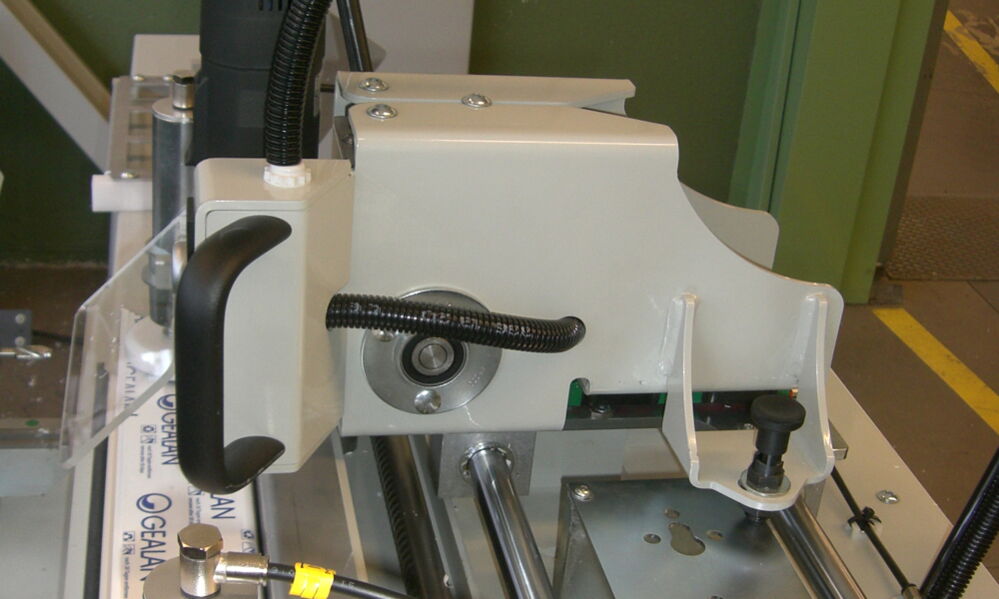

Copy milling unit
