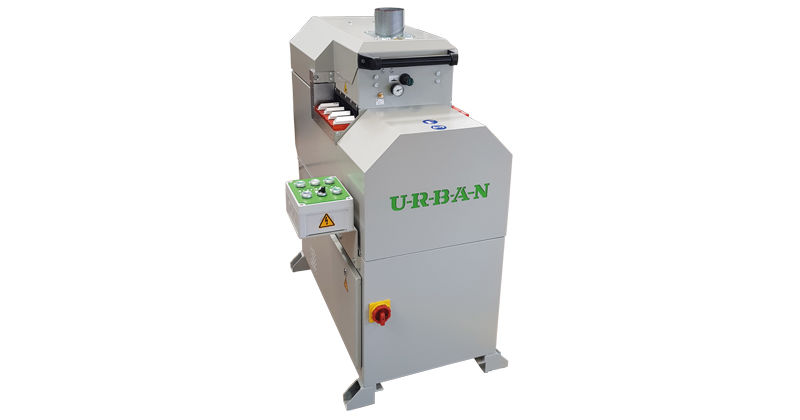

GLS 200/S-4 | Automatic quadruple glazing bead saw

for automatic cutting of four PVC glazing beads at 45°

Highlights

• Automatic cutting of four glazing beads in a 45° angle cut with undercutting of the glazing bead base
• Work sequence without permanent holding of the start button
• Controllable hydro-pneumatic saw blade feed
• Frequency converter for increasing the cutting speed and optimising the cutting quality
• Adjustable pneumatic clamping unit with selectable clamping sequence
• No shim change within one profile system required
• Glazing simulation unit for accurate cuts without overlapping of the seals, infinitely variable using hand wheel with counter
• Removal of sawing residues by stripper ring mounted at the guide block
• Easy handling

Options

• Electronic servo length stop with PC control (LAEG 2600/4)
• Glazing bead simulation automatically adjustable via servo motor (only in conjunction with LAEG 2600/4)
• Profile-dependent shims
• Profile support in 3 m or 6 m length
• Lateral extraction device
• Extraction system

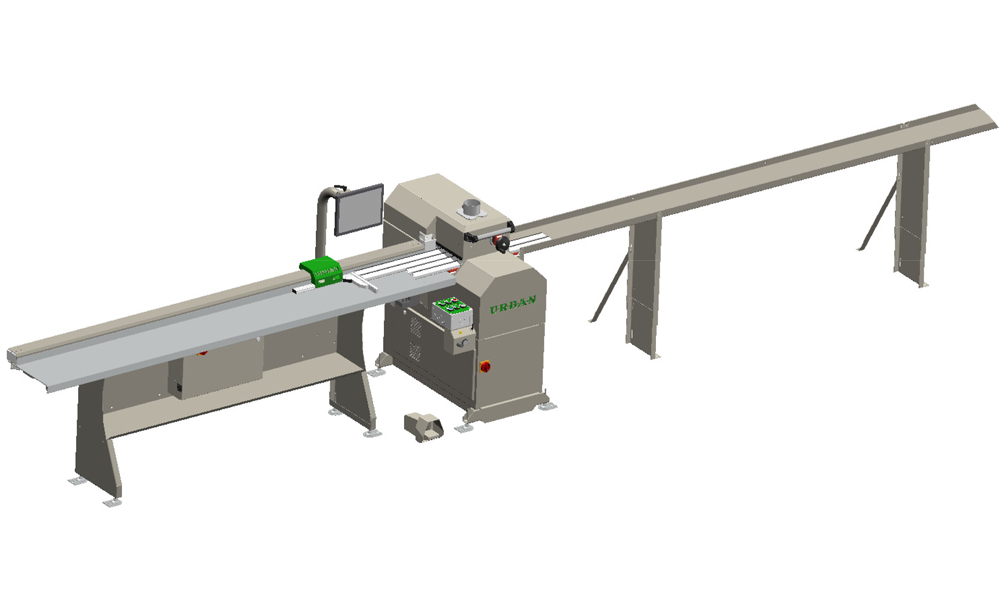

• GLS 200/S-4 with electronic length stop LAEG 2600/4 and profile support
